AC Distribution Panel

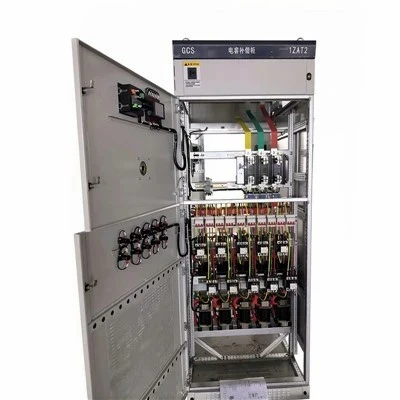

The AC Distribution Panel functions as the central node for incoming alternating current power management, isolating, switching, and distributing electrical loads safely across industrial machinery and commercial systems. Built on 1.5mm cold-rolled steel or stainless steel enclosures, these panels integrate modular circuit breakers, high-purity copper busbars, and comprehensive terminal blocks to prevent overloads and short circuits. Engineered for direct integration into OEM equipment skids or standalone control rooms, each unit undergoes strict dielectric voltage withstand testing prior to dispatch.

Modular Busbar Architecture: Main distribution busbars utilize high-purity copper, bolted using torque-controlled fasteners to minimize contact resistance and thermal hotspots under full load.

Rigid Enclosure Construction: Seam-welded corners and polyurethane poured-in-place door gaskets maintain structural integrity and prevent dust or moisture ingress in harsh environments.

Logical Component Layout: DIN rail arrangements and wire duct sizing comply with industrial wiring standards, leaving 30% spare space for future circuit additions.

Integrated Safety Shielding: Clear polycarbonate internal deadfront barriers protect technicians from accidental contact with live line terminals during maintenance operations.

Industrial Automation Skids: Distributing motor control and PLC power feeds in automated manufacturing lines.

Commercial HVAC Systems: Managing power routing for large-scale chillers, air handling units, and ventilation controllers.

Genset & Power Backup Units: Acting as the primary automatic transfer and distribution interface for standby diesel generators.

Renewable Energy Systems: Combining AC outputs from commercial inverters before grid tie-in or local consumption.

Manufacturing operations adapt directly to engineering drawings, bill of materials (BOM), and single-line diagrams provided by client teams.

Enclosure Modifications: Custom cutouts for HMIs, pushbuttons, cable glands, and cooling fans executed via CNC turret punches.

Component Integration: Procurement and factory-installation of specific breaker brands (ABB, Schneider, Siemens, Eaton) per project specifications.

Wiring Identification: Terminal markers, wire ferrules, and schematic-matching alphanumeric tags applied to every conductor.

Production relies on standardized fabrication lines operating inside certified ISO 9001 facilities. Sheet metal undergoes automated laser cutting, CNC bending, and electrostatic epoxy powder coating (80 um dry film thickness) tested for salt spray resistance.

Quality assurance mandates a 3-step verification protocol:

Dimensional Inspection: Verifying enclosure dimensions, mounting hole locations, and cutout tolerances against CAD data using digital calipers and coordinate measuring tools.

Wiring Continuity Check: Automated optical and multimeter testing verifying correct phase sequencing and terminal torque values.

Dielectric Withstand Test: Applying 2.5kV AC between live parts and the grounded enclosure for 1 minute to confirm insulation integrity.

Standards Compliance: Built in accordance with IEC 61439-1/-2 and UL 508A structural guidelines (supporting documentation available for project file submission).

Material Traceability: Mill test certificates (MTC) provided for structural steel and copper busbars.

Shipment Documentation Package: Includes as-built electrical schematics, terminal connection maps, routine test reports, and component data sheets.

Units are bolted securely to fumigation-free plywood pallets, wrapped in anti-static moisture-barrier film, and enclosed with heavy-duty corrugated edge protectors. Loose components and keys are sealed inside internal document pockets. Standard export transit uses ocean freight or air cargo containers with shock-impact indicators attached to the outer crating.
