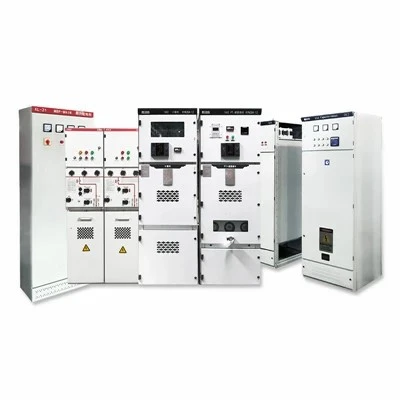

DC Distribution Panel

Direct current power distribution unit engineered to centralize circuit protection, power routing, and distribution across industrial, telecommunication, and renewable energy systems. Built with electrolytic copper busbars and modular DIN-rail mounts, the assembly manages high-amperage DC feeds while maintaining low contact resistance. Enclosures utilize 1.5mm to 2.0mm cold-rolled steel or SUS304 stainless steel with exterior-grade polyester powder coating, protecting internal electrical components against environmental exposure.

Optimized Thermal Distribution: Internal component spacing and busbar layouts prevent localized hotspots during continuous high-load operation.

Modular Configuration: Accommodates mixed-pole breaker arrangements and shunt trips for remote monitoring integration.

Secure Termination: Tin-plated electrolytic copper busbars minimize galvanic corrosion at terminal connection points.

Clear Circuit Identification: Laser-etched nameplates and DIN-rail labeling correspond directly to supplied wiring schematics.

Solar Photovoltaic (PV) Systems: Combines and distributes DC strings from solar arrays prior to inverter input.

Telecommunications: Manages -48V DC power distribution racks for cellular base stations and data centers.

Industrial Automation: Supplies regulated DC power to PLC racks, actuators, and emergency shutdown loops.

Energy Storage Systems (BESS): Manages battery rack feeds and isolation for commercial energy storage units.

Engineered to integrate directly into existing cabinet footprints and electrical schemas.

Mechanical Adjustments: Custom enclosure dimensions, mounting hole patterns, and specific color finishes via RAL powder coating.

Electrical Modifications: Tailored busbar sizing, specific circuit breaker brand integration (ABB, Schneider, Eaton, Siemens), and integrated monitoring sensors (Hall-effect current transducers, voltage meters).

Engineering Deliverables: 2D/3D CAD models (STEP/IGES) provided within 48 hours of specification confirmation.

Production relies on standardized sheet metal fabrication and rigorous electrical testing.

Fabrication: CNC laser cutting (Amada) and CNC bending ensure precise enclosure tolerances (+/- 0.2 mm).

Busbar Processing: Automated CNC copper busbar punching and bending machines ensure exact hole alignment and low-resistance bends.

Testing Protocol: Every panel undergoes 100 percent factory acceptance testing (FAT), including 2.5kV dielectric withstand voltage testing, insulation resistance checks, and mechanical operation verification of all breakers and fuses.

Standards Compliance: Designed and manufactured in accordance with IEC 61439-2 and UL 891 standards (dependent on regional configuration).

Material Traceability: Mill test certificates (MTC) supplied for copper busbars and structural steel.

Shipped Documentation: Wiring schematics, terminal layout diagrams, bill of materials (BOM), and factory test reports delivered with every shipment.

Export Packaging: Secured on ISPM 15 compliant heat-treated wooden pallets, wrapped in anti-corrosion VCI film, and edged with high-density foam corner protectors to prevent transit vibration damage.

Lead Time: Standard configurations ship in 3 to 4 weeks; custom-engineered projects require 5 to 6 weeks from drawing approval.
