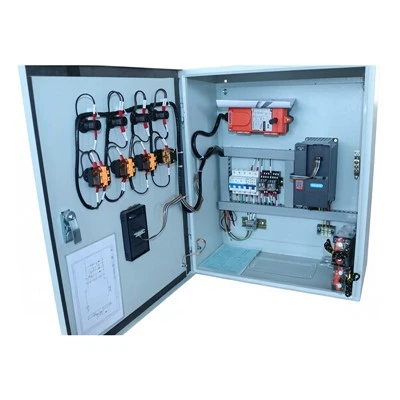

Outdoor Power Distribution Cabinet

Outdoor Power Distribution Cabinets house and protect low-voltage electrical distribution equipment in exposed, harsh environmental conditions. Engineered for utility sub-stations, industrial sites, and renewable energy farms, these enclosures prevent moisture, dust, and corrosive ingress while maintaining internal thermal stability. Standard configurations accommodate incoming main breakers, distribution blocks, metering units, and surge protection devices (SPDs).

Continuous Seam Welding: Laser and TIG welding processes eliminate structural gaps, securing high mechanical integrity and complete sealing against fluid and particulate entry.

Double-Baffle Rain Canopy: Integrated top overhang prevents rainwater pooling on the roof surface and channels moisture away from the door gasket interface.

Thermal Management Options: Integrated louvered vents with replaceable dust filters, thermostatically controlled resistance heaters, or side-mounted thermoelectric cooling units to mitigate internal condensation and heat accumulation.

Modular Interior Mounting: Adjustable galvanized mounting plates and DIN rail frameworks allow flexible positioning of internal switchgear, terminal blocks, and control components.

Corrosion-Resistant Hardware: 316 stainless steel hinges, fasteners, and locking mechanisms prevent galvanic corrosion in coastal, marine, or chemical processing environments.

Renewable Energy: Combiner and distribution nodes for utility-scale solar photovoltaic arrays and wind turbine balance-of-plant systems.

EV Charging Infrastructure: Primary grid-tie and sub-distribution panels for commercial DC fast-charging stations.

Telecommunications: Outdoor cellular communication sites and roadside traffic control systems requiring stable, weather-resistant power distribution.

Industrial Plants: Decentralized motor control and secondary power drops in heavy manufacturing facilities.

Manufacturing operations adapt cabinet dimensions, internal layouts, and protective features directly to project engineering drawings:

Dimensional Adjustments: Custom height, width, and depth variations outside standard modular footprints.

Material Upgrades: Substitution to 316L stainless steel or specific gauge thickness for high-salinity or severe industrial exposure.

Pre-Machining: CNC laser cutting for custom cutouts, HMI window kits, flange inlets, and cable entry plates prior to powder coating.

Integrated Components: Factory installation of incoming molded case circuit breakers (MCCB), terminal strips, current transformers (CT), and power meters based on supplied single-line diagrams (SLD).

Production relies on automated sheet metal processing lines to maintain structural precision across volume runs:

Fabrication: Trumpf CNC laser cutting machines and Amada CNC punch presses hold dimensional tolerances within +/-0.1 mm. Bystronic press brakes form uniform enclosure shells.

Surface Treatment: Automated 8-stage pre-treatment tanks apply zinc phosphate conversion coatings before electrostatic powder application, achieving salt spray resistance exceeding 1,000 hours (ASTM B117).

Quality Inspection: Coordinate Measuring Machines (CMM) verify dimensional accuracy. In-process checks measure powder coat thickness using magnetic induction gauges. Every finished enclosure undergoes a water-ingress simulation test and electrical continuity check prior to crating.

Compliance Standards: IEC 61439-1/-2, UL 508A / NEMA 250, ISO 9001 quality management system.

Documentation Package: Provided submittal packages include dimensional CAD drawings (DWG/STEP), electrical schematic integration guidelines, material mill test reports (MTR), and third-party IP/NEMA test certificates.

Cabinets ship secured to ISPM 15-compliant heat-treated wooden pallets. Each unit is wrapped in anti-corrosion VCI (Volatile Corrosion Inhibitor) film and high-density polyethylene foam edge protectors to prevent transit damage. Standard components ship within 3 to 4 weeks; engineered custom builds require 5 to 7 weeks depending on factory load and component sourcing.
