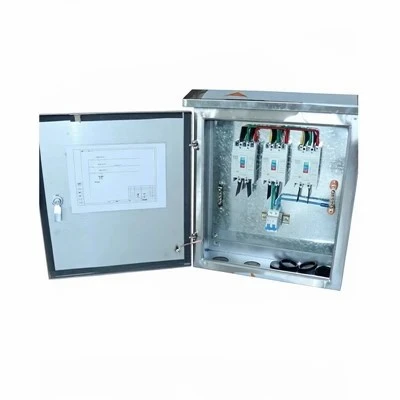

Generator Automatic Transfer Switch

The Industrial Generator Automatic Transfer Switch continuously monitors utility-side voltage and frequency. Upon a grid failure or voltage drop outside preset tolerances, the microprocessor controller initiates an engine start signal and executes an automated load transfer to the backup generator source. Restoration of utility parameters triggers an automated retransfer and controlled generator cool-down sequence. Designed for continuous industrial power distribution, the unit integrates dual mechanical and electrical interlocks to eliminate the risk of parallel source connection.

Dual Mechanical & Electrical Interlocking: Solid physical interlock bars and auxiliary electrical circuit blocks prevent simultaneous closure of utility and generator contactors.

Microprocessor-Based Monitoring: Continuously tracks phase voltage, frequency asymmetry, and phase loss. Fully programmable thresholds for undervoltage, overvoltage, underfrequency, and overfrequency.

Direct Manual Override: Safe-to-operate external manual handle allows zero-energy mechanical load transfer during scheduled maintenance or total control power loss.

Auxiliary Signal Contacts: Equipped with 2NO/2NC dry contacts for remote generator start initiation, breaker position feedback, and external fault annunciation.

Modular Arc Extinction System: High-dielectric arc chutes isolate and rapidly suppress electrical arcs during high-current switching cycles, extending contact lifecycle.

Commercial Real Estate: High-rise office buildings, shopping complexes, and residential backup distribution boards.

Healthcare Infrastructure: Operating theaters, intensive care units, and critical diagnostic equipment lines requiring uninterrupted power continuity.

Telecommunications: Cellular base stations, switching centers, and data distribution exchanges demanding stable grid-to-genset transitions.

Industrial Manufacturing: Automated production lines, continuous-process plants, and warehousing facilities vulnerable to voltage sags and downtime.

Enclosure Engineering: Floor-standing distribution cabinets, wall-mounted boxes, or specialized powder-coated finishes matching specific RAL industrial color schemes.

Control Logic Configuration: Tailored programmable timer delays for engine warm-up, transfer dead-band, and engine cool-down cycles.

Accessory Integration: Integration of surge protection devices (SPD), multi-function power analyzers (kWh meters), or custom terminal layouts.

OEM / ODM Support: Tailored front-panel silk-screening, custom firmware splash screens, and localized user manuals for private-label distributors.

Sheet Metal Processing: In-house CNC laser cutting and turret punching maintain strict dimensional tolerances for enclosure frameworks and busbar mounting structures.

Busbar Fabrication: Electrolytic copper busbars are CNC-punched, silver-plated at high-current contact points to minimize electrical resistance, and torque-verified using calibrated tools.

Assembly & Wiring: Internal wiring harnesses follow rigid industrial schematic standards, utilizing labeled ferrules and secure terminal crimping.

Routine Factory Testing: 100% of manufactured units undergo dielectric strength testing (AC 2.5kV/1min), insulation resistance verification (>100MΩ), mechanical endurance checks, and simulated live-source transfer testing via programmable power sources before crating.

Compliance Standards: Engineered and tested in compliance with IEC 60947-6-1 (Automatic Transfer Switching Equipment) standards, with structural provisions adaptable to UL 1008 specification requirements upon request.

Certificates Available: CE declaration, ISO 9001 quality management system certification, and third-party routine test reports.

Engineering Documentation Package: Complete shipment packages include English wiring schematics, controller programming manuals, dimensional CAD drawings, and individual factory calibration test sheets.

Packaging Specification: Secured to fumigation-free plywood export pallets, wrapped in anti-static moisture-barrier film, and enclosed in heavy-duty corrugated cartons or reinforced wooden crates.

Standard Lead Time: 15 to 25 business days for standard catalogue configurations; 30 to 45 business days for engineered custom orders.

Shipping Terms: FOB, CIF, or EXW via sea freight, air cargo, or international express courier.
