Lighting Distribution Panel

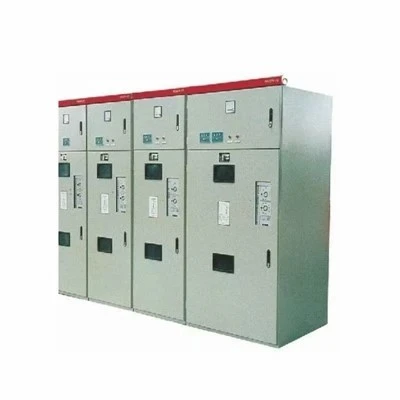

The Industrial Lighting Distribution Panel manages and distributes branch circuit power for commercial and industrial lighting systems. Configured for indoor and outdoor installations, it houses thermal-magnetic circuit breakers, neutral/ground bars, and copper busbars inside a heavy-gauge steel or stainless steel enclosure. It isolates lighting loads from heavy machinery circuits to prevent voltage fluctuations and complies with IEC 61439 and UL standards.

Modular Interior Layout: Accommodates plug-in or bolt-on miniature circuit breakers (MCBs) and residual current circuit breakers (RCCBs).

Partitioned Busbar Design: Main copper busbars maintain 35mm clearance gaps to prevent phase-to-phase flashovers under thermal expansion.

Hinged Inner Dead Front: Protects installers from live parts during routine maintenance or branch breaker additions.

Knockout and Gland Plate Access: Removable top/bottom gland plates allow custom cable entry drilling without structural modification.

Integrated Grounding Grid: Dedicated copper earth and neutral bars reduce loop impedance and meet strict earth-leakage requirements.

Commercial Complexes: Office towers, shopping malls, and hospitality lighting management.

Industrial Facilities: Manufacturing shop floors, assembly lines, and high-bay warehouse illumination.

Critical Infrastructure: Transportation hubs, tunnels, utility pump stations, and data center perimeter lighting.

Outdoor Installations: Port terminals, exterior facade lighting, and site perimeter distribution.

Enclosure Modifications: Custom dimensions, window kits, rain hoods, and specific RAL color matching.

Internal Configuration: Integration of surge protection devices (SPD), kWh energy meters, contactors, and photoelectric control relays.

Busbar Sizing: Uprated copper busbars (up to 125% current density) for high-ambient-temperature environments.

Engineering Support: CAD and Eplan drawing generation provided within 48 hours for project approval.

Sheet Metal Processing: Trumpf CNC fiber laser cutting and Amada CNC turret punch presses maintain dimensional tolerances within plus/minus 0.1 mm.

Welding & Sealing: Robotic MIG/TIG welding ensures continuous seam integrity for IP54/NEMA ingress ratings.

Powder Coating Line: Pre-treatment includes degreasing, silane rinsing, and electrostatic spray curing at 200 degrees C, passing 500-hour salt spray testing.

Electrical Testing: Every assembled panel undergoes dielectric withstand testing (2.5kV for 1 minute), insulation resistance checks (>100 Mohm), and primary current injection verification before crating.

Standards Compliance: IEC 61439-1/-3, UL 67 (upon request), CE, RoHS.

Shipped Documentation: Test report per unit, material mill certificates for steel and copper, wiring schematic diagrams, and CE declaration of conformity.

Packaging Structure: EPE foam corner protection, wrapped in moisture-barrier plastic film, secured inside ISPM 15-compliant fumigated wooden crates.

Lead Time: Standard configurations ship in 15 business days; custom engineered projects require 20 to 25 business days.

Port of Export: Ningbo / Shanghai, China.
