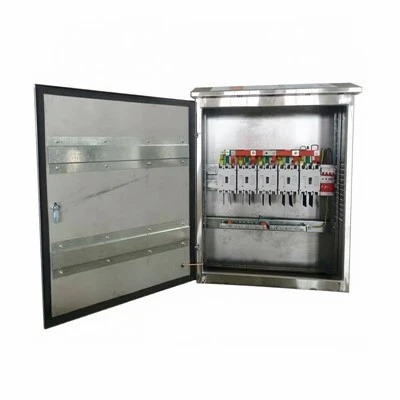

Intelligent Power Distribution Cabinet

The Intelligent Power Distribution Cabinet is an engineered electrical distribution hub integrating real-time phase monitoring, automated circuit protection, and remote telemetry. Designed for high-density power loads in industrial and mission-critical environments, the system collects electrical parameters at branch-circuit levels to prevent downtime and optimize energy efficiency.

Rated Voltage: Up to 690V AC, 50/60Hz

Main Busbar Rating: Up to 6300A

Compliance Framework: Designed to IEC 61439-1/-2 and UL 891 structural requirements

Enclosure Protection: IP30 to IP54 (customizable)

Communication Interface: RS485 (Modbus-RTU), Ethernet (Modbus-TCP / SNMP / IEC61850)

Real-Time Branch Circuit Monitoring: Integrated multi-channel measurement modules track voltage, current, power factor, and harmonic distortion per circuit breaker.

Modular Internal Layout: Functional compartments (busbar, functional unit, cable termination) separated by metallic partitions to restrict arc flash propagation (Form 4b separation).

Thermal Hotspot Detection: Optional fiber-optic or surface-mounted temperature sensors on critical busbar joints tied to automated trip interlocks.

Redundant Auxiliary Power: Dual-feed control power supply ensures uninterrupted monitoring during main grid anomalies.

Data Centers: Colocation and enterprise server rooms requiring granular PUE tracking and high-reliability feed distribution.

Industrial Automation Plants: Continuous manufacturing lines demanding selective coordination and rapid fault isolation.

Battery Energy Storage Systems (BESS): Megawatt-scale containerized setups requiring compact footprints and remote status reporting.

Commercial Complexes: HVAC and central utility rooms requiring centralized energy metering and load balancing.

Manufacturing operations accommodate specific project requirements based on single-line diagrams (SLD) and mechanical layout constraints.

Enclosure Dimensions: Adjustable height, width, and depth configurations for restricted electrical room footprints.

Incoming/Outgoing Access: Top or bottom cable entry, with removable gland plates drilled to project specifications.

Component Integration: Compatible with Schneider, ABB, Siemens, or Eaton circuit breakers and switchgear per bill of materials (BOM).

Control Logic: Pre-configured PLC/RTU logic mapping for direct integration into existing SCADA or BMS architectures.

Production processes combine CNC precision fabrication with rigorous electrical testing before factory acceptance, backed by multi-axis finite element analysis (FEA) during the design phase.

Sheet Metal Processing: Trumpf CNC laser cutting and Amada bending centers maintain dimensional tolerances within +/- 0.2 mm for frame assembly.

Busbar Fabrication: Automated CNC punching lines paired with controlled silver-plating tanks maintain joint contact resistance below 5 uOhm.

Wiring & Assembly: IPC-WHMA-A-620 compliant wire harnessing and torque-calibrated bolting using paint-marked torque seals.

Routine Factory Testing: Every unit undergoes dielectric withstand voltage testing (2500V for 1 min), primary current injection testing, and functional verification of all metering instruments.

Type Test Reports: Certified short-circuit withstand (Icw), temperature rise verification, and dielectric properties issued by ISO/IEC 17025 accredited testing laboratories.

System Standards: Manufactured in compliance with IEC 61439-1/2 and GB/T 7251.12; structural footprints aligned with UL 891 standards for export projects.

Quality Assurance: Plant certified under ISO 9001 (Quality Management), ISO 14001 (Environmental), and ISO 45001 (Occupational Health).

Shipped Documentation Package: As-built electrical schematics, PLC register maps, component datasheets, factory test reports (FAT), and maintenance manuals.

Transport Protection: Cabinets are bolted to ISPM 15 compliant heat-treated wooden export pallets, sealed in moisture-barrier vapor bags with activated silica gel desiccants, and enclosed in heavy-duty plywood crates.

Lifting Provisions: Integrated removable lifting lugs on top frames for safe crane hoisting; fork channels built into the base pallet.

Lead Time & Support: Standard configurations ship within 6 to 8 weeks upon drawing approval. Comprehensive remote commissioning guidance and engineering support are provided post-delivery.
